Mobile X-ray

DK Medical Systems’ Mobile X-Ray has has a compact
Design and light weight that enables to take an X-ray
in everywhere needed.

Mobile X-ray 컨텐츠 영역

Mobile X-Ray
Mobile X-Ray
Contact
global@dk.co.kr

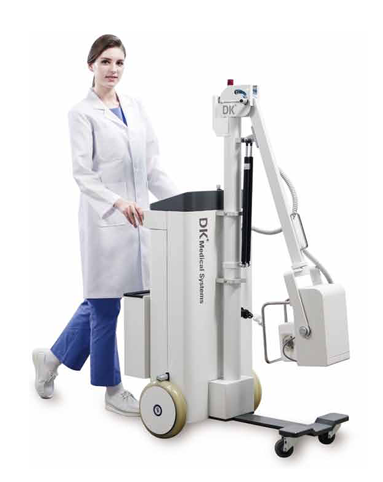

ELMO-T3P

Overview of Products

ELMO-T3 is a cost-effective mobile X-ray system that guarantees ultimate productivity. Thanks to a light weight and compact design, it enables to easily move in limited space such as intensive care, emergency rooms, and operating rooms.

  • Compact Design and one-touch Breaking System
  • Using Houseline System / Easy Installation

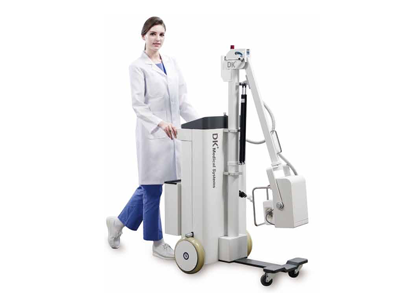

Light and Compact Design

Mobile X-ray system, ELOMO-T3 has a compact design that enables to take an X-ray Imaging even in a small space. This mobile X-ray is useful for patients who are not available to move. It can be operated from any standard wall outlet/

High Frequency Generator

Stable output by the high frequency inverter generator system.

5.1kW maximum current 100mA

Smooth Maneuvering

Compact and lightweight design to archieve easy maneuverability and good visibility.

Arm Free Stop Function Arm Free Stop Function

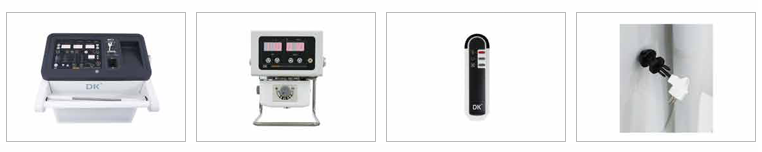

High Quality Image with Simple Operation

The touch keypad and digital display of kV and mAs value on the operating console enable exposure parameters to set easily and quickly. The anatomical programs(APR) features with symbolic buttons, contribute to intuitive operation with a minimum number of key stroke.

High Quality Image with Simple Operation

Specification

X-ray Generator
Tube Voltage Range 40 – 110kV (1kV steps)
mAs range 0.32 – 100mAs(26steps)
Rating 100mA/40 – 50kV
Control Method Inverter Method
Power 5.1kW
X-ray Tube
Max. Anode heat capacity 42.8kHU(30kJ)
X-ray tube focal spot size 1.8mm
Target angle 15˚
Main Body
Focus height 455-1,855mm
Arm length 1,100mm
Column rotation ±90˚
Total width 586mm
Total length 806mm
Total weight 145kg
Power Single-phase, Voltage 220V
Product Information
  • Manufacturer : DK Medical Systems
  • Origin : Made in Korea
  • Use Department : Radiology
