Innovision EXII (Ceiling Type - ELIN T5)

Overview of Products

The new digital generation Innovision (Ceiling Type - ELIN T5) covers the complete spectrum of clinical requirements and drastically reduces redundant work steps. Thus, it greatly optimizes the workflow, leading to higher performance.

INNOVISION has realized the safe, easy, and fast acquisition of clear radiographic images and low level of radiation dose.

Its unprecedented ease-of-use networking, combined with DICOM3.0 enables a streamlined workflow through seamless, effective data transfer.

Its refined total design package for real-time diagnosis can be translated into an ideal working condition.

  • Ultra High Definition Image Captured by Flat Panel Detector
  • Rapid Image Acquisition
  • Quick and Easy Preparation for Examination
  • Automatic positioning for Flexible and Versatile Applications
  • Advanced Imaging Applications
  • Ergonomic Design for High-Performance and Easy Operation
  • Synchronized Tube and Detector Stand(Option)

Auto-Positioning Function

The ceiling-mounted X-ray tube support automatically moves to the registered position with a single button press, relative to the bucky Stand and table. The SID and X-ray tube angle changes automatically, enabling easy tube support preparation and stowage, and ultimately realizing a remarkably efficient workflow. Manual positioning is also available for high-precision positioning.

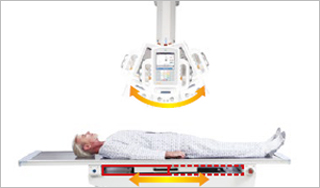

Ceiling Suspended X-Ray Tube Support Linked with a Bucky Stand and Table

The focal spot of the X-ray tube unit can be moved up and down in conjunction with vertical movement of the bucky stand and table. For a supine-positioned patient, the X-ray tube automatically moves to a preset SID, enabling precise and fast positioning.

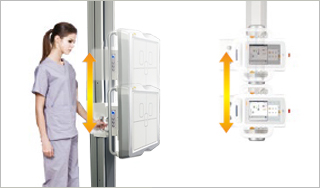

Synchronized for chest exams

Auto-synchronization

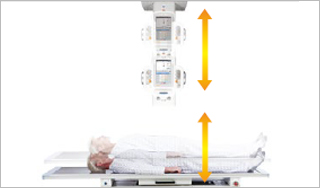

Synchronized with table bucky

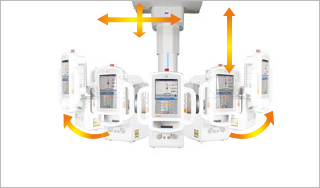

Soft Handling for Ceiling-mounted X-ray Tube Support

It enable users to operate the Ciling-mounted X-ray Tube Support with low physical pressure.

Smooth manual moving

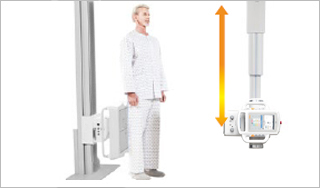

Long vertical stroke

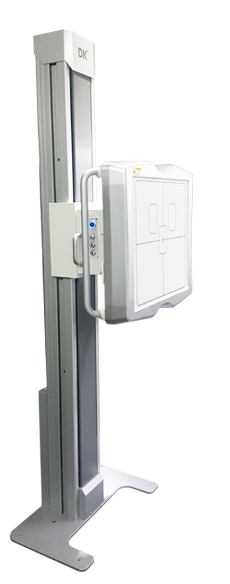

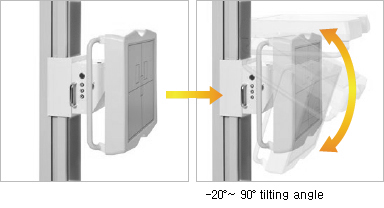

Bucky tilt allows horizontal positioning for upper extremity studies

Equipped with a tilting FPD unit, which accommodates wide range of positioning to meet all patient ranges and studies. Compactly designed for easy examination of sitting patient.

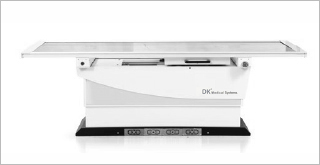

Elevating Horizontal Radiographic Table

The four-way floating top and electromagnetic locks enables easy positioning. It features both a highly rigid design and a durable shock-absorption mechanism.

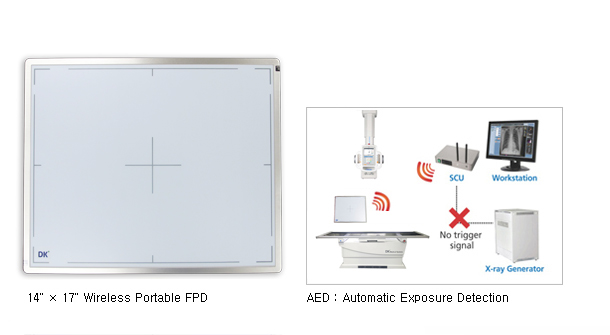

14" × 17"
Wireless Portable Detector

Wireless Detector for Diverse Applications

Knee joint axial

Cubital joint lateral

Abdomen lateral decubitus

Knee joint lateral

Auto-stitching Images for
Full spine and Long bone

INNOVISION is very easy to use with auto-stitching images at not only wall bucky stand but also table examination. It makes long bone examination fast and convenient.

Patient Stand Visualize the compelete spine by easily combining images with Elui image-stitching software

Clinical Benefits of Full Spine Imaging

Orthopedic diagnosis will benefit from this innovative application software in areas such as the assessment of scoliosis.

Call buttons for table and bucky stand

Call Buttons

Once the call button is pressed on wall bucky stand or table, regardless of where the ceiling support is located, each of them moves to their position in accordance with detector’s center and makes it quick and convenient.

Optimized Image Processing Software

Elui is an advanced image-processing software optimized for the digital radiography. Through Elui software, X-ray exposure and image parameters can be adjusted conveniently on the main screen. Images that have gone through X-ray exposure and post processing procedure, as they can be checked immediately through the monitor. This benefit can speed up workflow and increase patient throughput innovatively as you can see right away if there is any problem on the images.

  • Powerful User Interface
  • Optimized image processing algorithms for each different study
  • X-ray exposure and image parameters controlled on the main screen
  • Diagnostic images displayed in a second after X-ray exposure
  • Fast workflow and high patient throughput
  • High image quality with rich information and complete details
  • Easy operation with versatile functions

Patient Worklist

Powerful User Interface

Easy Stats Report

Easy Tools

EWAC (Elegant Auto Window Control)

Fine Image Rotation

Product Information
  • Manufacturer : DK Medical Systems
  • Origin : Made in Korea
  • Use Department : Radiology
